IAS-OLIVE
Designed Specially for Olive Quality Analysis
Reliable Assistant for Fair Trading

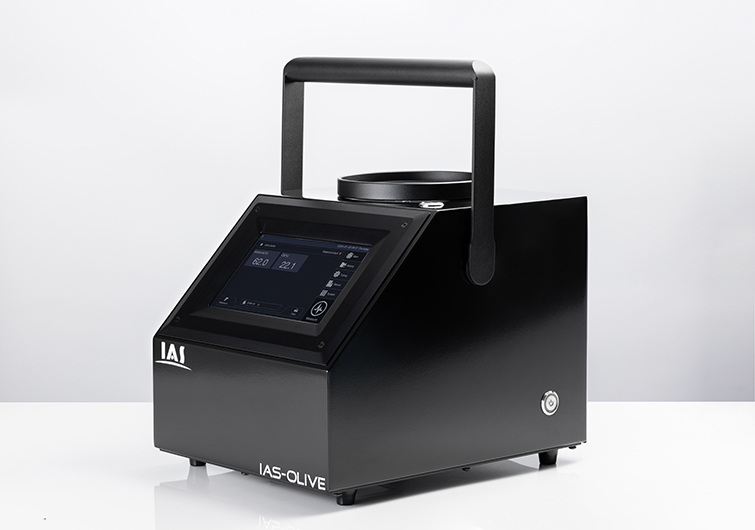

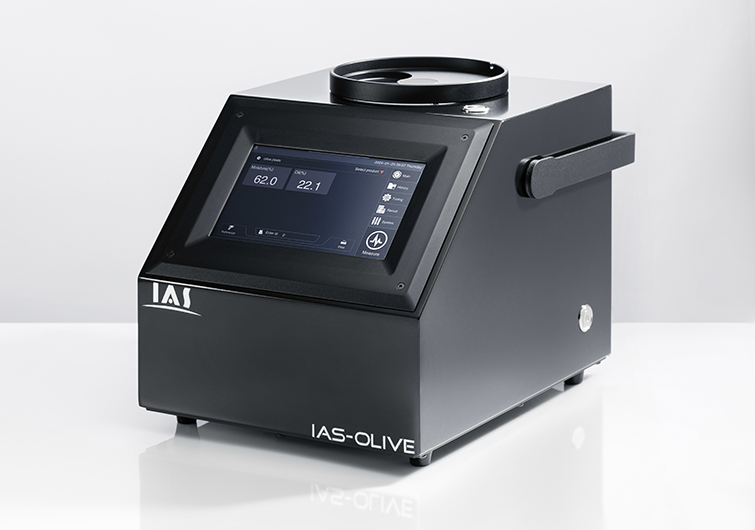

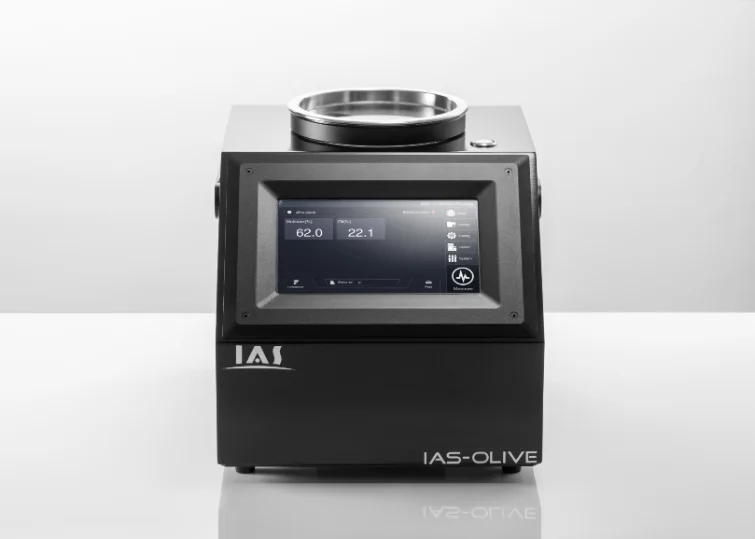

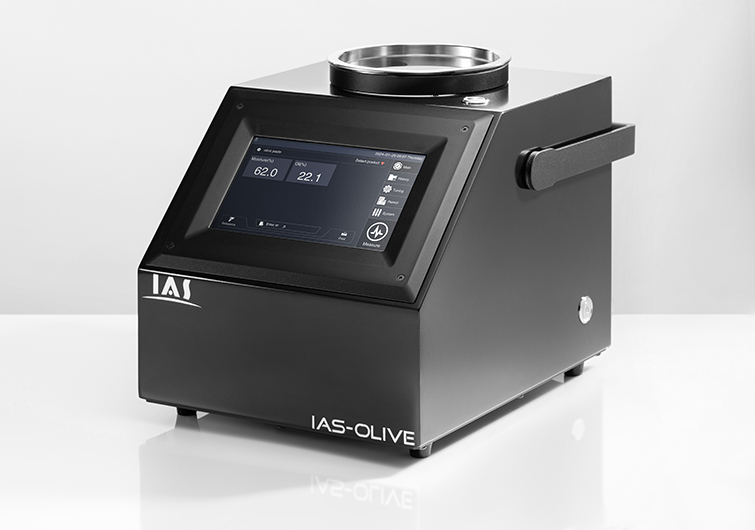

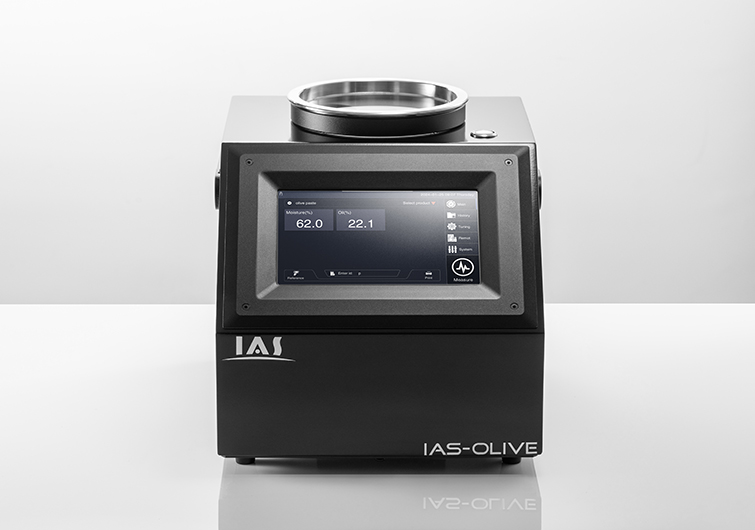

The IAS-OLIVE NIR analyzer is an advanced instrument specifically designed for olive quality testing. It can quickly and accurately measure key parameters such as moisture, fat, and acidity in whole olives and olive pomace.
IAS-OLIVE is recognized for its high accuracy, reliability, speed, and non-destructive feature. It helps producers, buyers and sellers to accurately grade olive products and price them based on desired quality to improve profitability.
Product Features
Compact and PortableIts compact and portable design is adaptable to various situations.- Simple OperationThe testing involves no pretreatment nor chemical reagents. One touch of ‘Start’ button will return analysis of multiple parameters in a short time.
- Large-Spot IlluminationThe instrument illuminates and collects information from large areas of the sample, improving the accuracy of the analysis.
- Multiple Size Options for Sample CellsA range of sample cells are available to suit different samples depending on their quantities and states.
- Automatic Self-MaintenanceFully automated referencing and calibration functions make machine maintenance hassle-free.
- Stable and DurableLong-life halogen-tungsten lamp as a light source ensures durability and reduces maintenance costs.
Application
-
Whole Olive/Olive Pomace
· Moisture、Oil Content 、Acid Value
Calibration and Sampling Accessory
-
AccessoryDescription

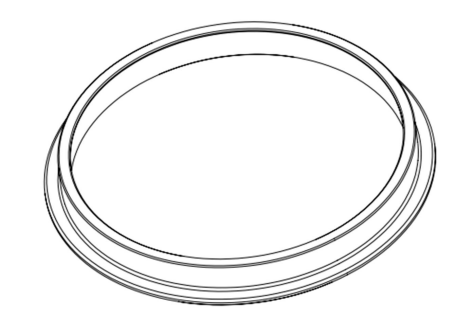

Name: Olive-Sample TrayDimensions: Diameter: 137.5mm, Height: 15mmFunction: Designed for the analysis of olives, olive pomace.

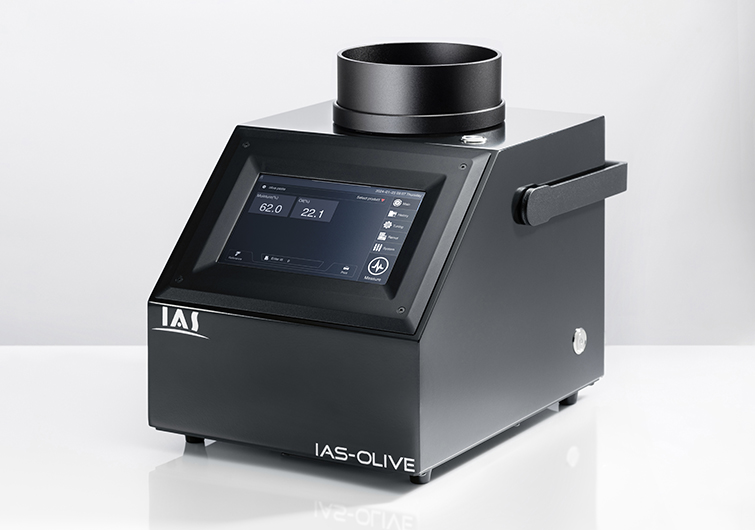

Name: Large Sample TrayDimensions: Diameter: 138mm, Height: 50mmFunction: Suitable for powder or granular samples and can also be utilized for forage analysis (used in conjunction with the press block)
Technical Specifications
Specification | Description |
Wavelength Range | 950-1650nm |
Resolution | 12nm |
Spectroscopic Principle | Array MEMS Micromirror + Grating |
Detector | InGaAs Detector |
Baseline Noise | ≤0.0005AU |
Wavelength Repeatability | ≤0.05nm |
Wavelength Accuracy | ≤2nm |
Absorbance Repeatability | ≤0.0005AU |
Testing Time | ≤1min |
Data Interval | 1nm |
Specification | Description |
Dimensions | 265mm x 340.5mm x 262.3mm |
Weight | 9kg |
Display | 7-inch Touch Screen |
Operational Temperature | 5-45°C |
Operating Humidity | <RH75% |
Storage Temperature | -20-60°C |
Light Source | Halogen-Tungsten Lamp |
Power Supply | 24V/3A |
Power Consumption | 25W |
Integrated Operating System within the Device | Linux |
