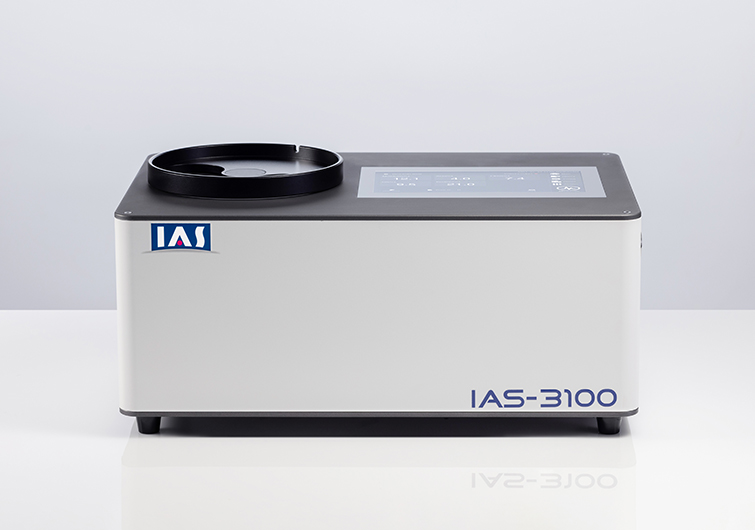

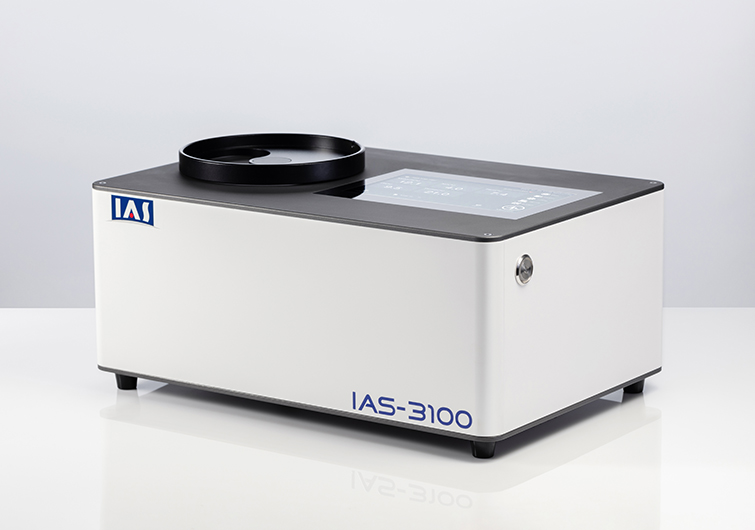

IAS-3100
Empowering Smarter Decision-Making in the Lab

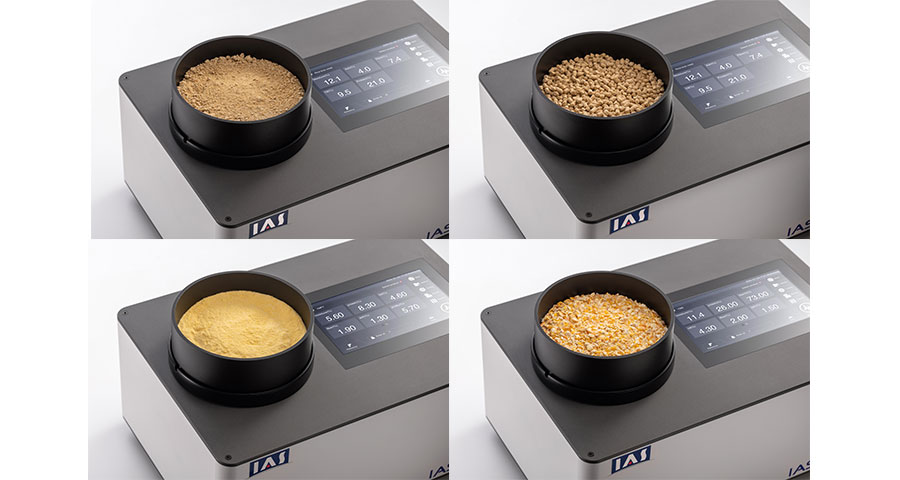

Analysis of Multi-State Samples
The IAS-3100 laboratory NIR analyzer is suitable for analysing granular, powdery, and liquid samples. Its compact and robust design makes it an ideal choice for real-time laboratory analysis.
The IAS-3100 features a large-area scanning mode, which helps include more sample in one measure and obtain higher-quality spectra. This instrument facilitates batch analysis to reduce manpower needs and increase sample volumes. It supports your daily work by tracking sample quality in real-time. The testing data provided by the 3100 have been reliable for fast-changing samples.
Product Features

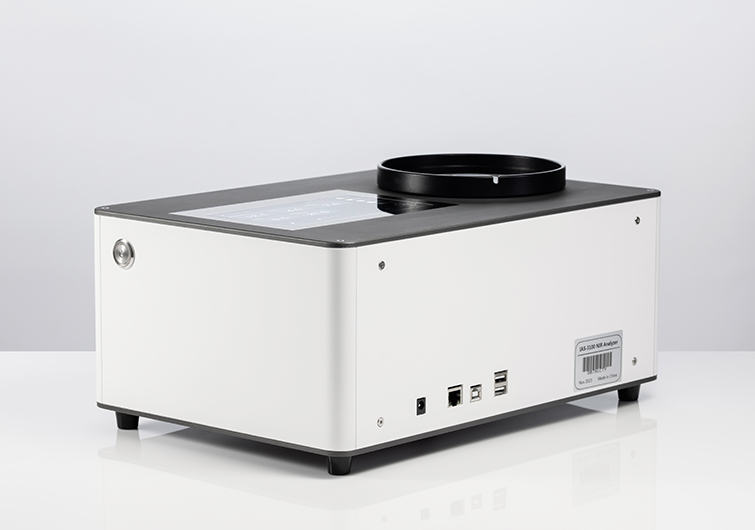

Compact and PortableIts compact and portable design is adaptable to various situations.- Simple OperationThe testing involves no pretreatment nor chemical reagents. One touch of ‘Start’ button will return analysis of multiple parameters in a short time.
- Large-Spot IlluminationThe instrument illuminates and collects information from large areas of the sample, improving the accuracy of the analysis.

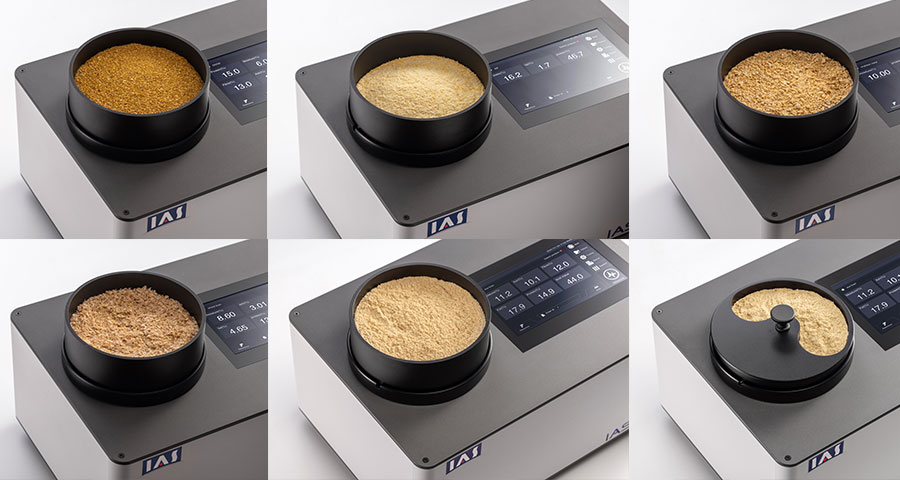

- Multiple Size Options for Sample CellsA range of sample Cells are available to suit different samples depending on their quantities and states.
- Automatic Self-MaintenanceFully automated referencing and calibration functions make machine maintenance hassle-free.
Application
-
Feed Analysis
· Detection of moisture, protein, ash, and other indexs in rice bran, rice bran meal, and soybean meal. -
Fermentation Industry
· Dynamic Control, Precise Node ManagementFermentation Industry
-
Fruit Industry
· Smart Sorting, Quality ControlFruit Industry
-
Tobacco Industry
· Rapid Screening, Effective Quality ControlTobacco Industry
Calibration and Sampling Accessory
-
AccessoryDescription
Name: 3100-Medium Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D:138mm, H:25mm(excluding handle)Function: Suitable for small granular (e.g., feed pellets) or powdery samples (e.g., flour, rice bran, rice bran meal)
Name: 3100-Small Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D:45mm, H:25mmFunction: Suitable for small sample volumes (e.g., herbal powder) and liquid (e.g., milk, soy milk, syrup)
Name: 3100-Transflection CoverMaterial: Aluminum Alloy (6061)Dimensions: D:38mm, H:8mm (excluding the handle), light path length: 1mmFunction: A transflection cover used with small sample cell, commonly used for sampling transparent liquid
Name: 3100-Small Cell HolderMaterial: Aluminum Alloy (6061)Dimensions: D: 136mm, H: 8.4mmFunction: A plate that holds a small sample cell.

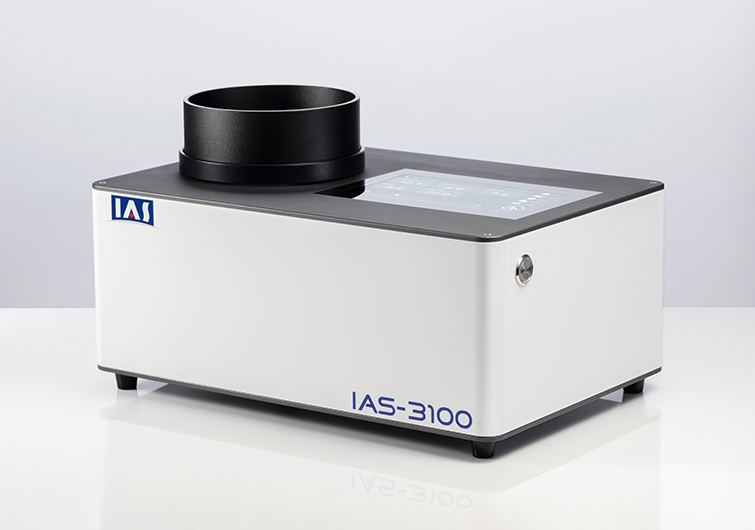

Name: 3100-Large Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D: 138mm, H: 50mmFunction: Suitable for powdery, granular, or grass-type samples.
Name: 3100-Large Cell PressMaterial: stainless steelDimensions: D: 128mm, H: 15mm (excluding handle)Function: Used with 3100-Large Sample cell for testing grass-type samples.
Name: 3100-Rotating DiscMaterial: Aluminum Alloy (6061)Dimensions: D: 145mm, H: 16mmFunction:1. Carries sample cells, controlled by a motor to rotate samples;
2. Holds reference and standard components for referencing, self-check, and calibration.
Technical Specifications
Specification | Description |
Wavelength Range | 920-1660nm |
Resolution | 10nm |
Spectroscopic Principle | Array MEMS Micromirror + Grating |
Detector | InGaAs Detector |
Baseline Noise | ≤0.0001AU |
Wavelength Repeatability | ≤0.02nm |
Wavelength Accuracy | ≤1nm |
Absorbance Repeatability | ≤0.0002AU |
Testing Time | ≤1min |
Data Interval | 1nm |
Specification | Description |
Dimensions | L:370mm x W250mm x H146mm |
Weight | 7 kg |
Display | 7-inch Touch Screen |
Operational Temperature | 5-45°C |
Operating Humidity | <RH75% |
Storage Temperature | -20-60°C |
Light Source | Halogen-Tungsten Lamp |
Power Supply | 24V/3A |
Power Consumption | 20W(average) |
Integrated Operating System within the Device | Linux |
