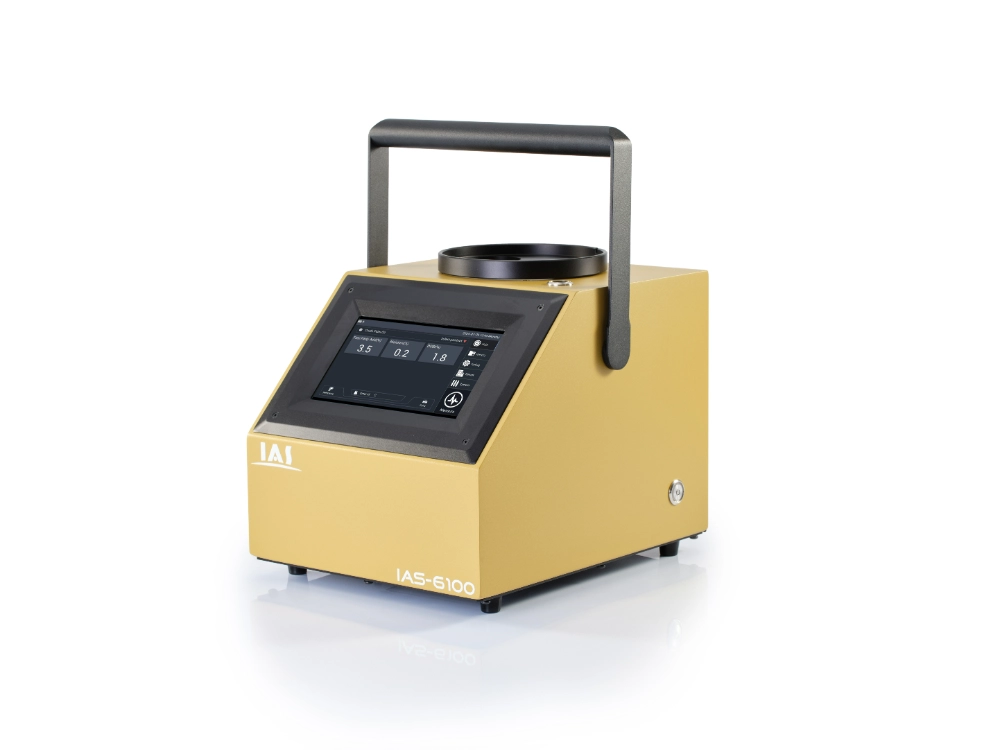

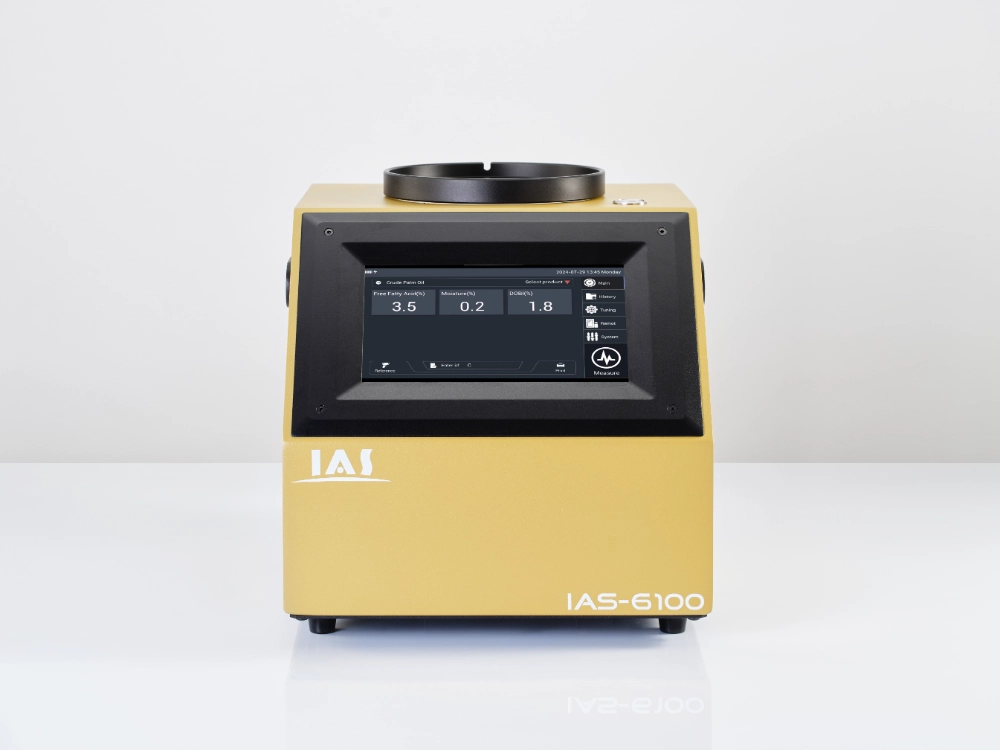

IAS-6100

Tailored for South and Southeast Asia
Quality Control Anytime, Anywhere

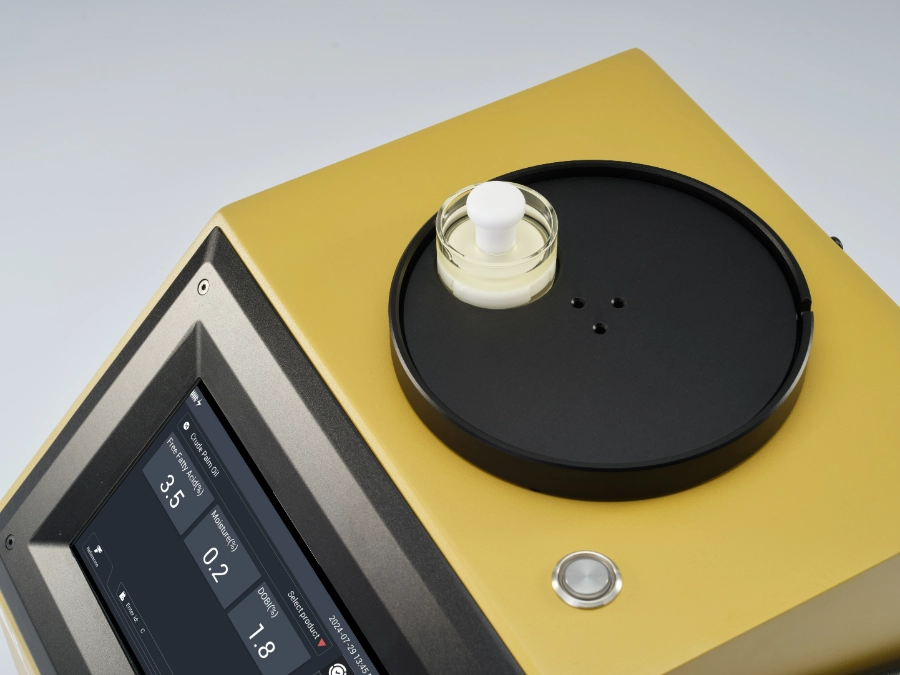

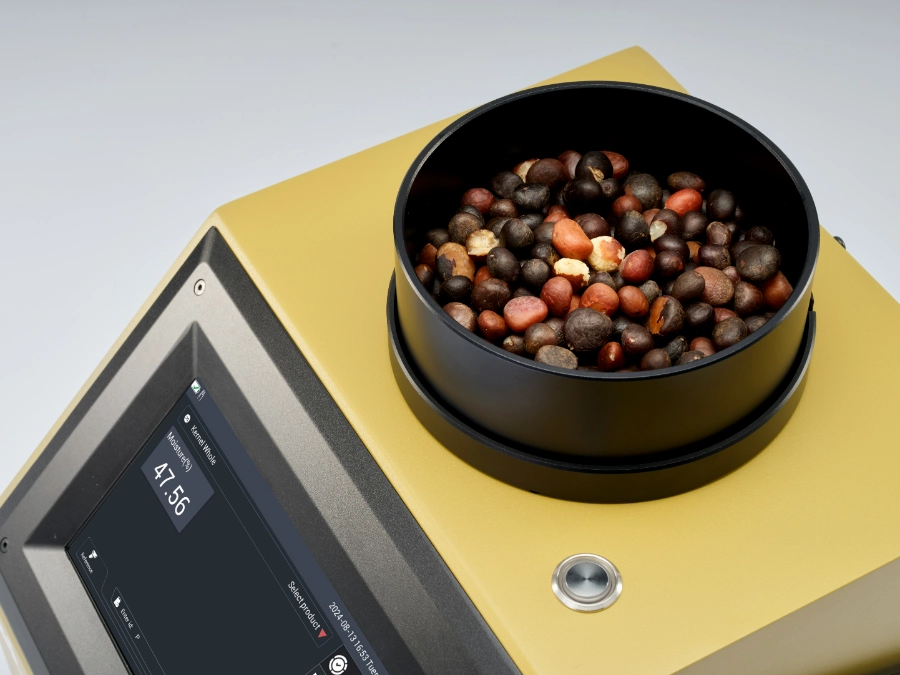

The IAS-6100 is specifically designed to meet the challenges of the complex and variable environments in South and Southeast Asia. Equipped with a new spectral engine, DMD digital micromirror scanning technology, and an upgraded next-generation circuit board and algorithm, the IAS-6100 boasts enhanced anti-interference capabilities, ensuring stable and reliable operation in diverse settings. The built-in model has been comprehensively upgraded, with the addition of applications for the palm oil industry. It can detect free fatty acids, moisture, DOBI, oil content, and other critical parameters in crude palm oil, palm kernels, palm kernel meal, and production waste. Its compact and portable design allows for flexible testing in various locations, including offices, production sites, laboratories, and even in the field.


The IAS-6100 is user-centric, offering a new experience in intelligent interaction. It features a brand-new 7-inch industrial-grade touch screen that enables one-touch intelligent detection, making operation more convenient and faster. Capable of rapid, non-destructive testing of small particles, powders, strips, and pastes, it delivers multiple indicators at the touch of a button, ensuring more precise and efficient quality control.

Product Features
  • Stable and Durable
    Built with advanced MEMS processing technology and military-grade micro-assembly techniques, it offers stronger resistance to high temperatures and a longer service life.
  • Multi-Industry Application
    Applicable in the palm oil, feed, food, flour, and Baijiu industries, providing quick and comprehensive testing results.
  • Compact and Portable
    Designed to be lightweight and portable, it flexibly adapts to various usage scenarios.
  • Simplified Operation
    Featuring a user-friendly interface and a highly automated design, it reduces manual intervention and enhances detection efficiency.
  • Efficient and Precise
    Near-infrared spectroscopy offers rapid, non-destructive, high-precision testing, ensuring accurate data.
  • Eco-Friendly and Energy-Efficient
    No sample pre-treatment required, reducing the use of chemical reagents and supporting green production.
Application
  • Feed Analysis

    · Detection of moisture, protein, ash, and other indexs in rice bran, rice bran meal, and soybean meal.

    Feed Analysis

  • Food Industry

    · Moisture analysis in surimi, and detection of ammonia nitrogen, total acid, and reducing sugars in soybean paste.

    Food Industry

  • Chinese Baijiu Industry

    · Detection of moisture, starch, and acidity in fermented grains.

    Chinese Baijiu Industry

  • Flour Industry

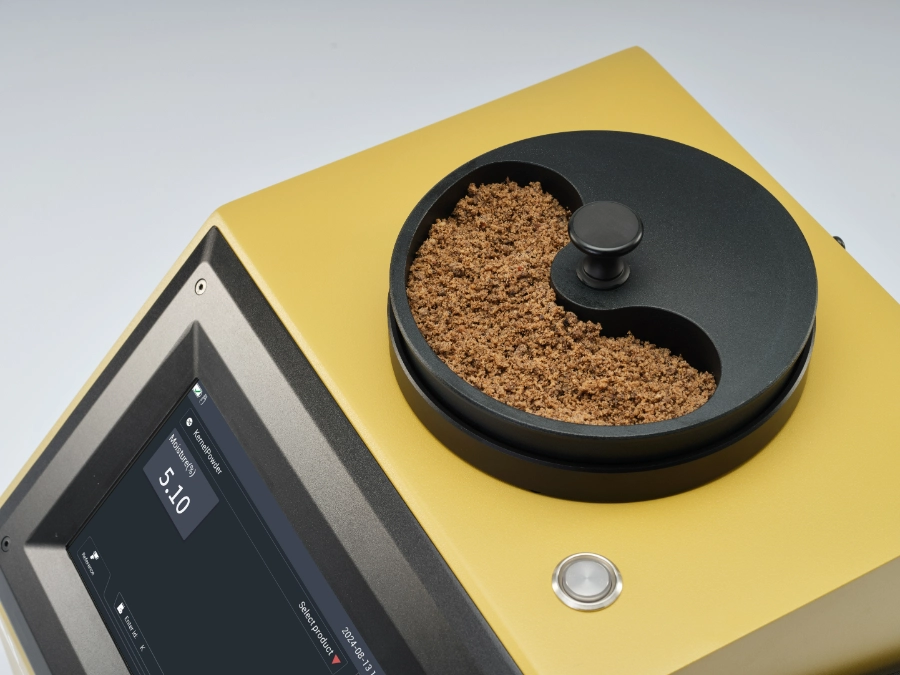

    · Detection of moisture, ash, protein, gluten, and water absorption rate in flour.

    Flour Industry

Calibration and Sampling Accessory
  • Accessory
    Description
    • Name: 6100-Medium Sample Cell
      Material: Aluminum Alloy (6061)
      Dimensions: D:138mm, H:25mm(excluding handle)
      Function: Suitable for small granular (e.g., feed pellets) or powdery samples (e.g., flour, rice bran, rice bran meal)
    • Name: 6100-Small Sample Cell
      Material: Aluminum Alloy (6061)
      Dimensions: D:45mm, H:25mm
      Function: Suitable for small sample volumes (e.g., herbal powder) and liquid (e.g., milk, soy milk, syrup)
    • Name: 6100-Transflection Cover
      Material: Aluminum Alloy (6061)
      Dimensions: D:38mm, H:8mm (excluding the handle), light path length: 1mm
      Function: A transflection cover used with small sample cell, commonly used for sampling transparent liquid
    • Name: 6100-Small Cell Holder
      Material: Aluminum Alloy (6061)
      Dimensions: D: 136mm, H: 8.4mm
      Function: A plate that holds a small sample cell.
    • Name: 6100-Large Sample Cell
      Material: Aluminum Alloy (6061)
      Dimensions: D: 138mm, H: 50mm
      Function: Suitable for powdery, granular, or grass-type samples.
    • Name: 6100-Large Cell Press
      Material: stainless steel
      Dimensions: D: 128mm, H: 15mm (excluding handle)
      Function: Used with 3100-Large Sample cell for testing grass-type samples.
Technical Specifications

Specification

Description

Wavelength Range

950-1650nm

Resolution

12nm

Spectroscopic Principle

Array MEMS Micromirror + Grating

Detector

InGaAs Detector

Baseline Noise

≤0.0005AU

Wavelength Repeatability

≤0.05nm

Wavelength Accuracy

≤2nm

Absorbance Repeatability

≤0.0005AU

Testing Time

≤1min

Data Interval

1nm

Specification

Description

Dimensions

265mm x 340.5mm x 262.3mm

Weight

9kg

Display

7-inch Touch Screen

Operational Temperature

5-45°C

Operating Humidity

<RH75%

Storage Temperature

-20-60°C

Light Source

Halogen-Tungsten Lamp

Power Supply

24V/3A

Power Consumption

25W

Integrated Operating System within the Device

Linux

Downloads
View more
    No Data
Our service
  • Equipped with proprietary high-performance MEMS NIR detection system and high-speed scanning algorithm, IAT NIR analyzers are able to collect spectra&nbsp;rapidly&nbsp;and accurately.&nbsp;They are&nbsp;also&nbsp;stable&nbsp;and durable and offer&nbsp;non-destructive, convenient&nbsp;and low-cost&nbsp;quality analysis function.
  • Our self-developed Linux-based APP, Tiso, features an intuitive interface that is easy to navigate. After a short training session, users are able to conduct quality analysis independently. We also developed different sampling accessories to make sample measurement an easier task than ever.
  • We provide one-on-one training to equip the customer teams with necessary knowledge and skills to smoothly operate software and hardware.
  • With rich experience and knowledge of different regions and industries, we customize maintenance plans for each customer with reliable post-sales support, giving customers peace of mind.
