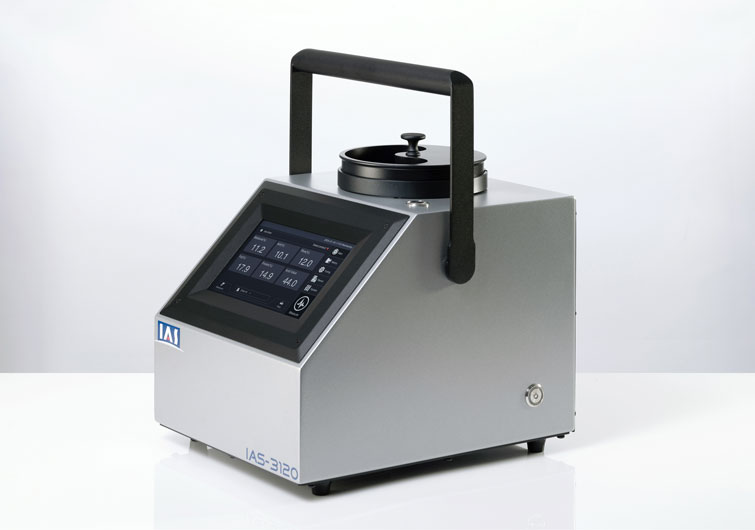

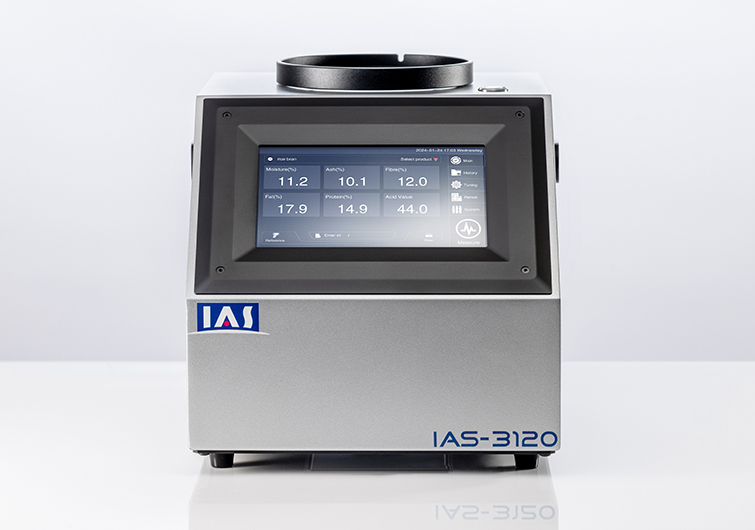

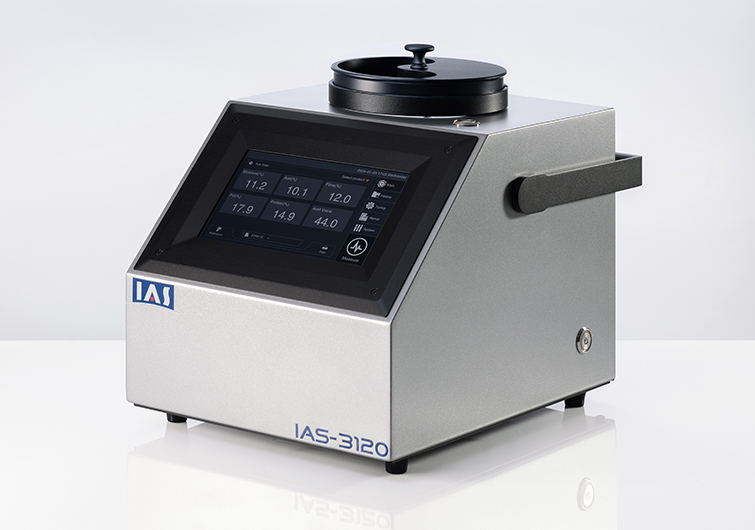

IAS-3120
On-the-Go Rapid Analysis
Versatile and Efficient Analysis for Multiple Scenarios
The IAS-3120 portable NIR analyzer, with its advanced digital exposure spectroscopy technology, exhibits exceptional sensitivity and precision in a compact, integrated design, providing consistently high-quality rapid testing results.
The powerful functionality and easy-to-operate feature of the IAS-3120 allow you to focus on more important tasks rather than spending time on instrument maintenance. Whether at the raw material stage or the finished product stage, in the laboratory or at the production site, reliable results can be obtained quickly. With real-time data, you can take quick actions to avoid costly rework and errors, thereby saving valuable resources.
Product Features
Compact and PortableIts compact and portable design is adaptable to various situations.- Precise, Rapid TestingEquipped with a self-developed high-performance MEMS NIR detection system and fast scanning algorithm, the instrument acquires spectra in rapidly and accurately.
- Simple OperationThe testing involves no pretreatment nor chemical reagents. One touch of ‘Start’ button will return analysis of multiple parameters in a short time.
- Large-Spot IlluminationThe instrument illuminates and collects information from large areas of the sample, improving the accuracy of the analysis.
- Multiple Size Options for Sample CellsA range of sample cells are available to suit different samples depending on their quantities and states.
Application
-
Feed Analysis
· Detection of moisture, protein, ash, and other indexs in rice bran, rice bran meal, and soybean meal. -
Food Industry
· Moisture analysis in surimi, and detection of ammonia nitrogen, total acid, and reducing sugars in soybean paste.Food Industry
-
Fermentation Industry
· Dynamic Control, Precise Node ManagementFermentation Industry
-
Chemical Industry
· Enhancing Production Safety, Reducing PollutionChemical Industry
Calibration and Sampling Accessory
-
AccessoryDescription
Name: 3120-Medium Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D:138mm, H:25mm(excluding handle)Function: Suitable for small granular (e.g., feed pellets) or powdery samples (e.g., flour, rice bran, rice bran meal)
Name: 3120-Small Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D:45mm, H:25mmFunction: Suitable for small sample volumes (e.g., herbal powder) and liquid (e.g., milk, soy milk, syrup)
Name: 3120-Transflection CoverMaterial: Aluminum Alloy (6061)Dimensions: D:38mm, H:8mm (excluding the handle), light path length: 1mmFunction: A transflection cover used with small sample cell, commonly used for sampling transparent liquid
Name: 3120-Small Cell HolderMaterial: Aluminum Alloy (6061)Dimensions: D: 136mm, H: 8.4mmFunction: A plate that holds a small sample cell.
Name: 3120-Large Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D: 138mm, H: 50mmFunction: Suitable for powdery, granular, or grass-type samples.
Name: 3120-Large Cell PressMaterial: stainless steelDimensions: D: 128mm, H: 15mm (excluding handle)Function: Used with 3100-Large Sample cell for testing grass-type samples.
Technical Specifications
Specification | Description |
Wavelength Range | 950-1650nm |
Resolution | 12nm |
Spectroscopic Principle | Array MEMS Micromirror + Grating |
Detector | InGaAs Detector |
Baseline Noise | ≤0.0005AU |
Wavelength Repeatability | ≤0.05nm |
Wavelength Accuracy | ≤2nm |
Absorbance Repeatability | ≤0.0005AU |
Testing Time | ≤1min |
Data Interval | 1nm |
Specification | Description |
Dimensions | 265mm x 340.5mm x 262.3mm |
Weight | 9kg |
Display | 7-inch Touch Screen |
Operational Temperature | 5-45°C |
Operating Humidity | <RH75% |
Storage Temperature | -20-60°C |
Light Source | Halogen-Tungsten Lamp |
Power Supply | 24V/3A |
Power Consumption | 25W |
Integrated Operating System within the Device | Linux |
