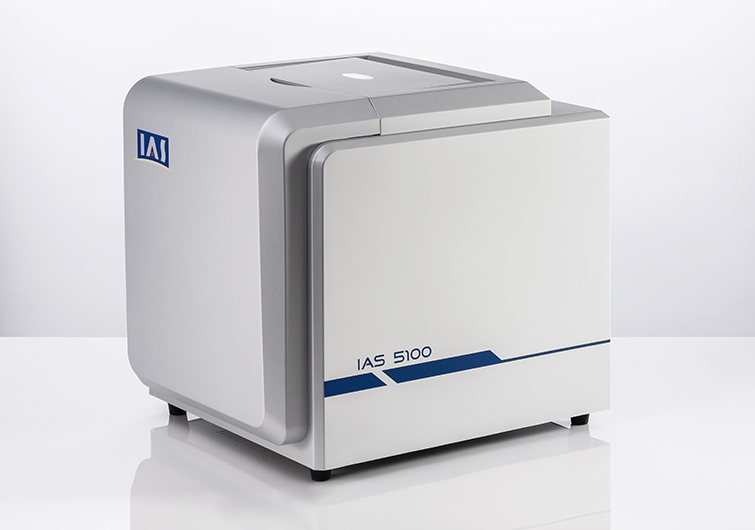

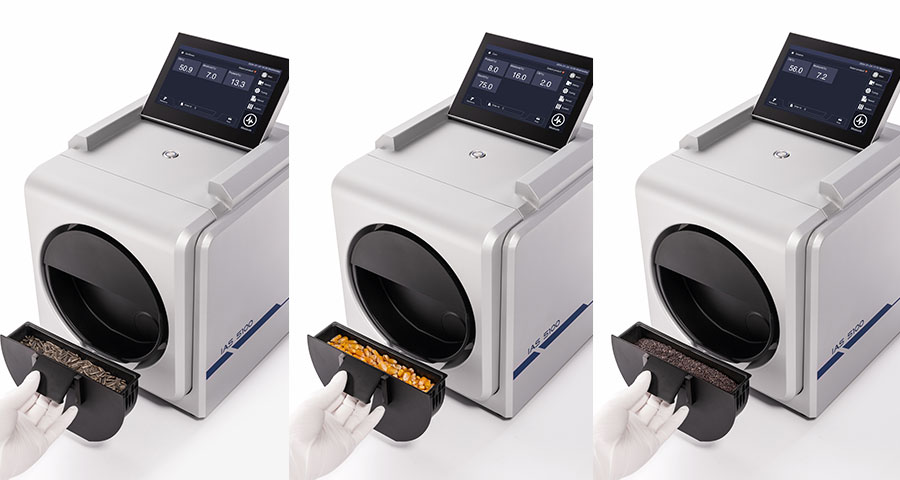

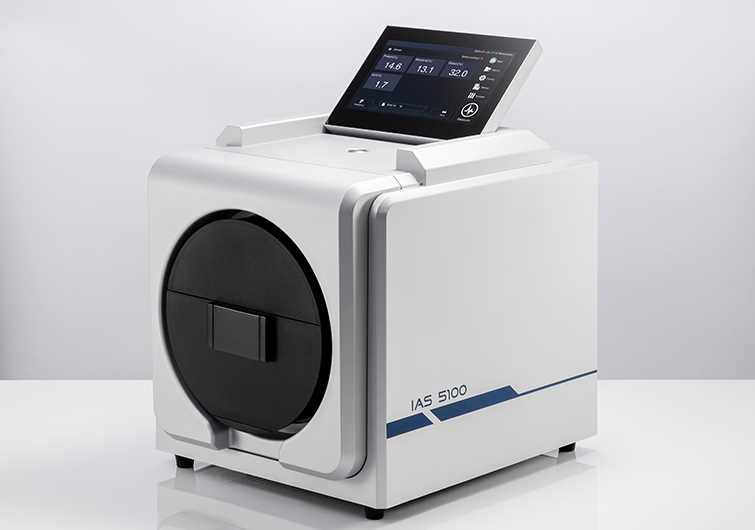

IAS-5100
Pioneer in Grain Quality Assessment
Innovative Blending & Side-Lighting Design
The IAS-5100 portable NIR analyzer features diffuse reflectance through an innovative side-lighting structure and allows continuous blending of granular samples during testing. These designs will improve the accuracy and consistency of the analysis. The prediction models used in IAS-5100 are built on a large database created from extensive sampling, which further enhances the accuracy of the analysis results.
Thanks to its automatic functions, operators without specialized training can conduct testing efficiently. With an intuitive touchscreen interface, IAS-5100 only requires one button to complete one analysis in few minutes and can be used in trading markets, inside trucks, and fields.
Product Features
Compact and Portable, Ready-to-Use AnywhereSmall and light, the analyzer is designed for quick analysis in multiple scenarios and saves time and costs.- Innovative Blending & Side-Lighting DesignThe analyzer operates based on diffuse reflectance through a side-lighting structure and the blending feature helps collect more sample information and increases accuracy of the result.
- User-Friendly InterfaceIntuitive touchscreen interface supports one-button quick analysis.

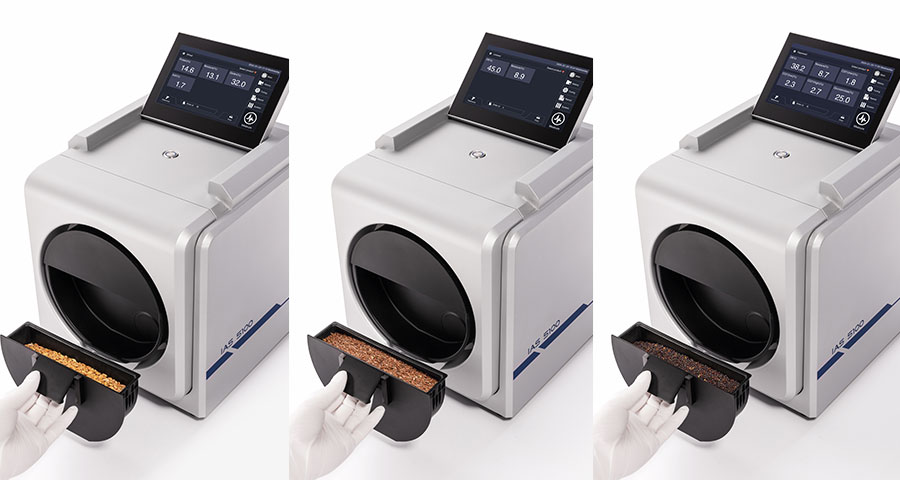

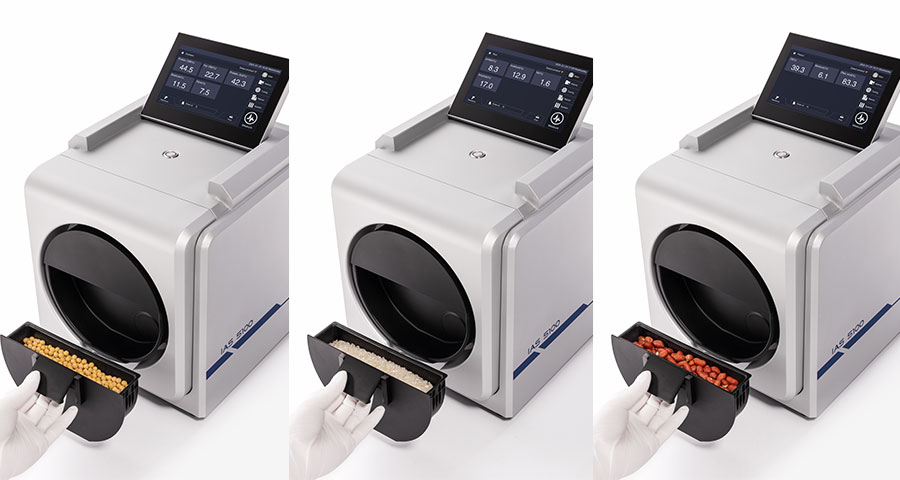

- Multiple Size Options for Sample CellsA range of sample cells are available to suit different samples depending on their quantities and states.
- Automatic Self-MaintenanceFully automated referencing and calibration functions make machine maintenance hassle-free
- Stable and DurableLong-life halogen-tungsten lamp as a light source ensures durability and reduces maintenance costs.
Application
-

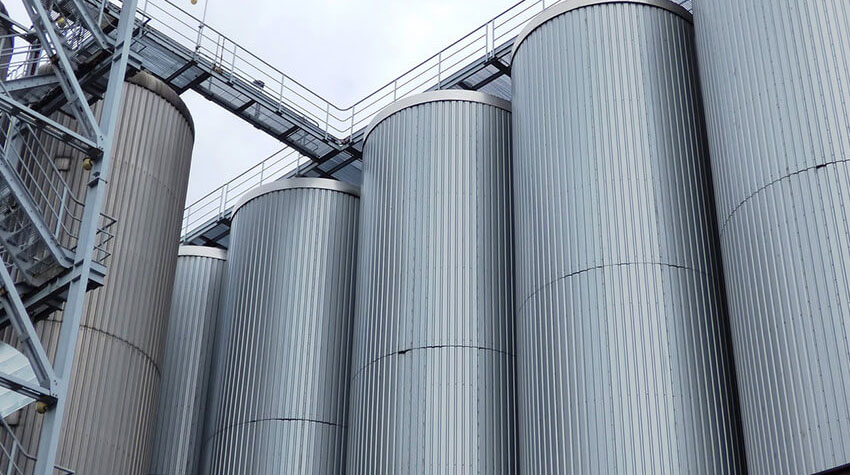

Grain and Oil Industry
· Precise Analysis, Quality-Based Pricing
Calibration and Sampling Accessory
-
AccessoryDescription

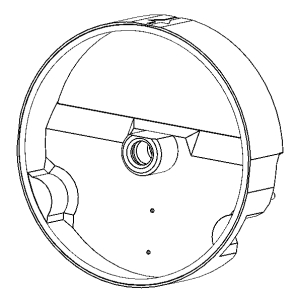

Name: 5100-Sample Cell AMaterial: NylonDimensions: D: 183mm, H: 103mm, W: 42mmFunction: Suitable for granular samples like soybeans, rapeseed, etc.

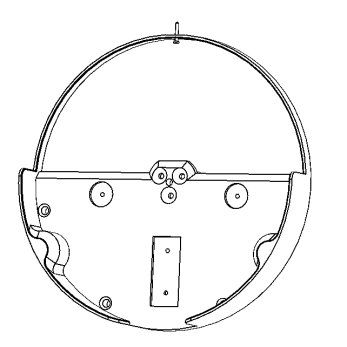

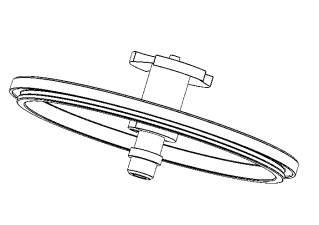

Name: 5100-Rotating Disc AMaterial: NylonDimensions: D: 186mm, H: 47mmFunction:
1. Carries Sample Cell A, controlled by a motor to rotate samples;
2. Holds reference and standard components for referencing, self-check, and calibration.
Name: 5100-Sample Cell B CoverMaterial: Aluminum Alloy (6061)Dimensions: D: 180mm, H: 13mm (excluding the handle)Function: Seals 5100-Sample Cell B during rotations to prevent spillage

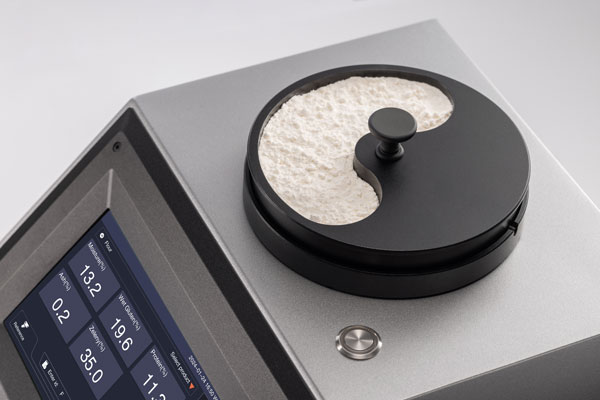

Name: 5100-Sample Cell BMaterial: Aluminum Alloy (6061)Dimensions: D:174mm, H: 45mm.Function: Suitable for powdery samples like camellia seed powder, rice bran, rice bran meal, etc.
Name: 5100-Rotating Disc BMaterial: Aluminum Alloy (6061)Dimensions: D: 180mm, H: 30mmFunction:
1. Carries Sample Cell B, controlled by a motor to rotate samples;
2. Holds reference and standard components for referencing, self-check, and calibration.
Technical Specifications
Specification | Description |
Wavelength Range | 950-1650nm |
Resolution | 12nm |
Spectroscopic Principle | Array MEMS Micromirror + Grating |
Detector | InGaAs Detector |
Baseline Noise | ≤0.0005AU |
Wavelength Repeatability | ≤0.05nm |
Wavelength Accuracy | ≤2nm |
Absorbance Repeatability | ≤0.0005AU |
Testing Time | ≤3min |
Data Interval | 1nm |
Specification | Description |
Dimensions | L:278mm x W:337mm x H:292mm |
Weight | 5kg |
Display | 7-inch Touch Screen |
Operational Temperature | 5-45°C |
Operating Humidity | <RH75% |
Storage Temperature | -20-60°C |
Light Source | Halogen-Tungsten Lamp |
Power Supply | 24V/3A |
Power Consumption | 25W |
Integrated Operating System within the Device | Linux |
Downloads
View more
Related Products
-
IAS-3100
The IAS-3100 laboratory NIR analyzer is suitable for analysing granular, powdery, and liquid samples. Its compact and robust design makes it an ideal choice for real-time laboratory analysis. -

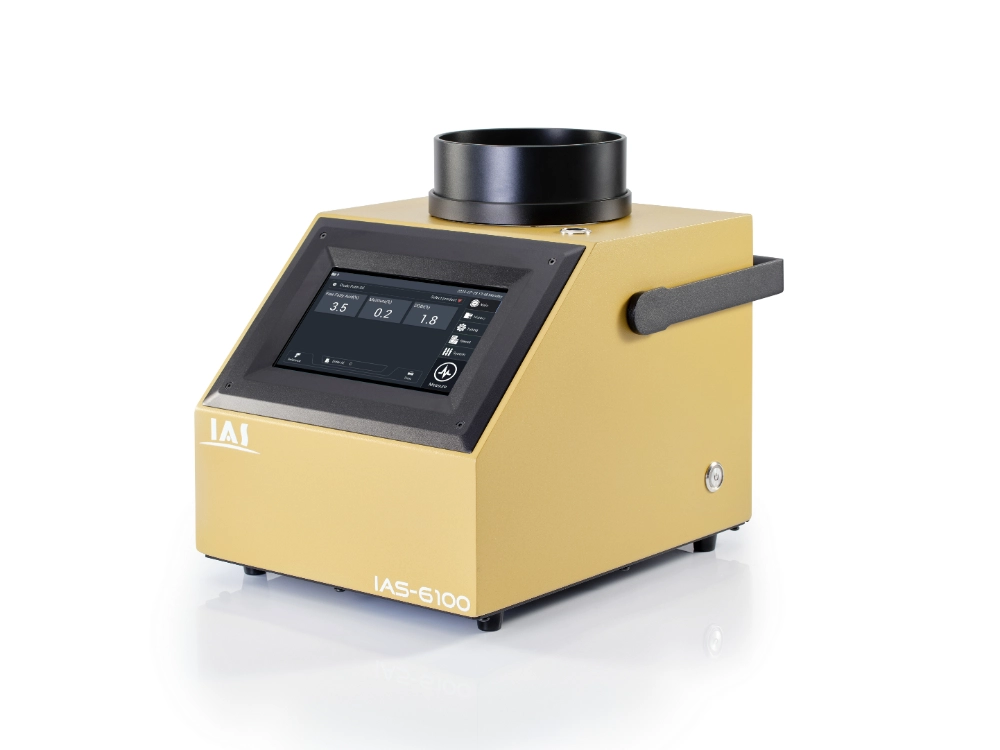

IAS-6100
